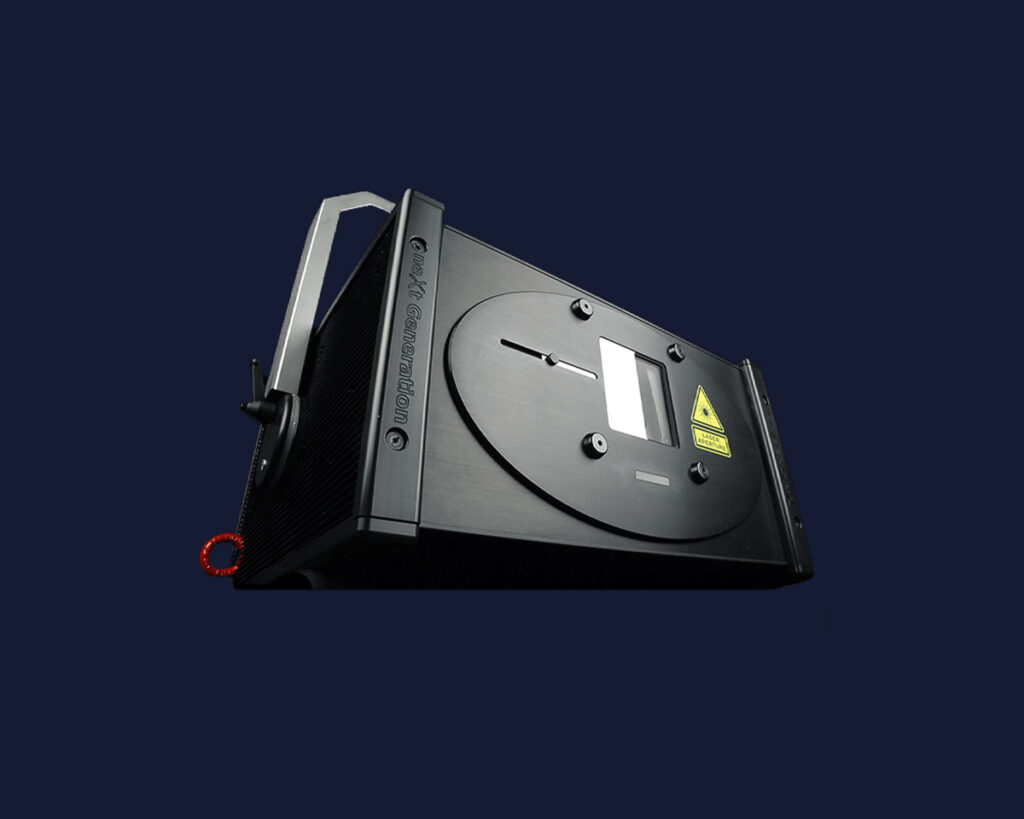

PHAENON XD AT
High-end color laser projectors

PHAENON XD AT

High-end color laser projectors

High-end color laser projectors for professional applications equipped with Coherent Taipan laser modules and blue 445 nm diode modules. The PHAENON XD RYGCB 30000 additionally uses cyan 488 nm Coherent Taipan laser modules. All laser projectors of the PHAENON AT series are characterized by the very high visibility of the laser beams and the high output powers of up to 27 watts (PHAENON XD RYGCB 30000). The beam data are impressive and are in the beam diameter of 4.0 mm, while the beam divergence is <0.4.*

Equipment

Wavelength 638-639 nm 520-530 nm 445-450 nm 577-590 nm 480-488 nm
W R G B Y C
XD RYGB 25000 23 5.0 8 8 6
XD RYGCB 30000 27 5.0 8 8 6 5
Control Modes
AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, Stand-alone player, ILDA, DMX / ArtNET, Control software “LA.toolbox” for PC or Mac included
Scanner
CT 6210H X,Y scanner with LaserAnimation's proven Turboscan driver electronics for excellent projection quality Scan speed: 40k ILDA 8°, maximum projection angle: 80° (typically 50°), Response time (2° opt. step): < 0.2 ms, Aperture: 4mm
Divergence*
<0.4 mrad
Beam Specs
4.0 mm
Dimensions
L 62,0 cm x W 40,6 cm x H 22,3 cm
Weight
43 kg
IP Rating
54
Scope of Delivery
LA.toolbox, power cable, user manual, Interlock connector, key switch
*FWHM average depending on model

Properties

  • Full color laser projectors with best beam characteristics thanks to pure Coherent Genesis Taipan OPSL assembly
  • Very high visibility of the laser beams
  • OPSL driver electronics from LaserAnimation
  • CT 6210 scanner with the proven TurboscanXD driver electronics
  • AVB interface for streaming ILDA data via Ethernet
  • ILDA interface
  • Motorized beam adjustment
  • Control via “LA.toolbox” software (included)
    • Electronic mask
    • Color correction
    • DGC (Digital Geometric Correction)
    • Laser Disable
  • Very high performance in a compact format
  • Grating wheel option available (6 rotating gratings)
  • DSP Mark2 integrated or DSP Mark2 playback integrated optionally available
  • Dante2ILDA internal optionally available
  • DSP integration optionally available

Downloads

PHAENON Mainboard Product Details

Electronic mask
This important function allows limiting the laser output for certain areas. The intensity of the laser beam can be adjusted in a range from 0% to 100% for each individual shape created with the editor. This makes it possible to correctly protect specific scanning areas such as the auditorium or sectors with optical equipment (video beamers, cameras). The big advantage of this mask, which is configured in the projector, compared to a mask generated in the show controller is the fact that programming errors which may occur when a show is edited will not disable the mask.
Color correction
Via the integrated color correction, the color channels can be adjusted from 0% to 100% with a resolution of 24 bit. With “White” the power for each laser source is calculated and corresponds to True White D65. With the function “Advanced” delays of the diodes can be set with a resolution of 5.2 µs.
DGC Mapping
Digital Geometic Correction
With Digital Geometric Correction, the projection image can be easily corrected and used for projectors or show controllers without integrated DGC. Sixteen different geometrical correction setups are available. For each setup the DGC Input and Output can be adjusted individually and the laser image can be corrected for projection on uncommen projection surfaces. For example: The projection surface is uneven and consists of two panels positioned at an angle. One half of the DGC Input has to be displayed on the left side of the uneven projection surface and the other half on the right side. First you choose which area of the DGC Input you want to display on the projection surface. Then, you correct the DGC Output so that the projection of the image is displayed correctly on the area of the projection surface.
The Laser Disable Button is a special safety button to interrupt the laser output via Ethernet. The Laser Disable Button can be easily integrated into the network and configured. The status of up to four different Laser Disable Buttons can be monitored via the PHAENON settings.

Accessories and upgrades

USB2AVB
Digital network protocol
DSP Mark 2 integrated
ILDA2AVB
Digital Network Protocol
Laser Disable Button LAN
Safety button to stop the laser output
DSP Mark 2 playback integrated
Grating Modul
For polar light and other laser effects

LA.toolbox Software

With this intuitive software it is possible to control important functions of the laser projector and adjust operating values. The LA.toolbox is available as a PC version and Mac version. Both are supplied with every laser projector and are also available for download.
All functions and parameters / diagnosis of multiple laser projectors can be controlled by one “LA.toolbox” via ethernet. For laser safety the ‘Disable All’ button is integrated to the user interface. The laser output for all connected laser devices is switched off immediately when clicking this button.
For PHAENON X projectors the full functionality of the software is available. For all “Basic” projectors (BLITZ, BLIZZARD, PHAENON) less functions are available.
For all adjustments of the projection an internal test picture can be used in the projection menu. All settings concerning the projection
  • horizontal, vertical size
  • inversion
  • position offset
  • keystone correction and rotation
    • can be exactly adjusted with sliders in the clearly laid out “Projection” menu and saved in 3 different transformation settings.
A timer can be used to switch the state of the laser at a predefined time. For instance the laser can switch from “Run” to “Standby” mode. Drop down menus are used to set the state which the laser is to switch to when a timer triggers as well as the date or date range (from/to), time of day and day of the week. Up to 6 timers can be configured.
All 6 ILDA channels are scalable from 0% to 100% to achieve the best possible white balance. Up to 4 color settings can be saved and called up. The ILDA signals ‘Interlock’ and ‘Intensity’ are evaluated.
Four laser statuses can be selected for laser operation: “Shutdown” I “Standby” I “Test 10%” I “Run”. In the “Shutdown” mode the drivers are deactivated and the temperature control is inactive. This saves considerable amounts of energy. In “Standby” there is no current to the laser sources, which also saves energy. However, in contrast to “Shutdown” their operating temperature is maintained. This has the advantage that switching from “Standby” to “Run” is possible much more quickly. One advantageous option is the automatic “Shutdown” resp. “Standby” function. This switches the laser into the corresponding operating mode in case no ILDA signal is present for a specific adjustable period of time (for instance at the end of a show). The device will use less electricity and cool off better.
Ambient temperature, heat sink temperature, internal and dew point temperature, relative humidity as well as fan voltage are clearly displayed.

The states of all laser sources can be monitored, the power can be scaled and the behavior of the laser with a small modulation signal can be adapted slightly through the “Bias Offset”. This setting allows the best possible adjustment of the effective soft blanking of the Lasergraph DSP.

The states of all laser sources can be monitored, the power can be scaled and the behavior of the laser with a small modulation signal can be adapted slightly through the “Bias Offset”. This setting allows the best possible adjustment of the effective soft blanking of the Lasergraph DSP.

With this new safety technology we give users the option to use a graphics editor to flexibly define protected areas in a laser projection. The editor can be used in way similar to a vector based graphics program to create a mask from geometric shapes (polygons, circles and rectangles). Safety parameters can then be defined individually for each of these shapes.

Two different mask functions are available:
1. Electronic Mask This important function allows limiting the laser output for certain areas. The intensity of the laser beam can be adjusted in a range from 0% to 100% for each individual shape created with the editor. This makes it possible to correctly protect specific scanning areas such as the auditorium or sectors with optical equipment (video beamers, cameras). The big advantage of this mask, which is configured in the projector, compared to a mask generated in the show controller is the fact that programming errors which may occur when a show is edited will not disable the mask.
2. Safety Mask For safety reasons every laser projector is equipped with a scanner safety circuit to protect the audience. This mechanism determines the sum of the scanner velocities for the horizontal and vertical deflection of the beam and compares this to the predefined minimum speed. In case the beam velocity is below the minimum or if the beam is completely motionless this safety mechanism will block the laser beam.

For allowing beam effects with a stationary beam anyway in areas where the audience is not at risk, for instance below the ceiling, the “Safety Mask” can be used to graphically define several areas where a static beam will be possible, see picture. (Up to now only one rectangular safety area could be defined.)

The Phaenon X laser projectors are equipped with a motorized beam adjustment for superposing the beams. This internal component allows an easy and comfortable adjustment of the beam superposition. This is a big advantage of the Phaenon X projectors which users will certainly appreciate.
The position of the individual beams can change over time when the projectors are frequently transported, set up and taken down again. Until now the beams could only be adjusted using the small adjustment screws on the side of the device. In everyday use the projectors are often already installed in a stage setup, e.g. attached to a truss high up, when the laser is turned on and the beam misalignment is discovered. This used to mean the laser had to be taken down again for adjustment. This considerable effort is no longer necessary using the “Beam Adjust” of the LA Toolbox Software.
An optionally integrated grating module can be controlled over DMX or manually with the “Grating Wheel Settings”.
Up to 4 settings can be saved. The DMX base address can easily be configured using the software.

Watch the Animation of the LA.toolbox Software
