RTI ANGO
High-performance RGB sky projector

RTI ANGO

High-performance RGB sky projector

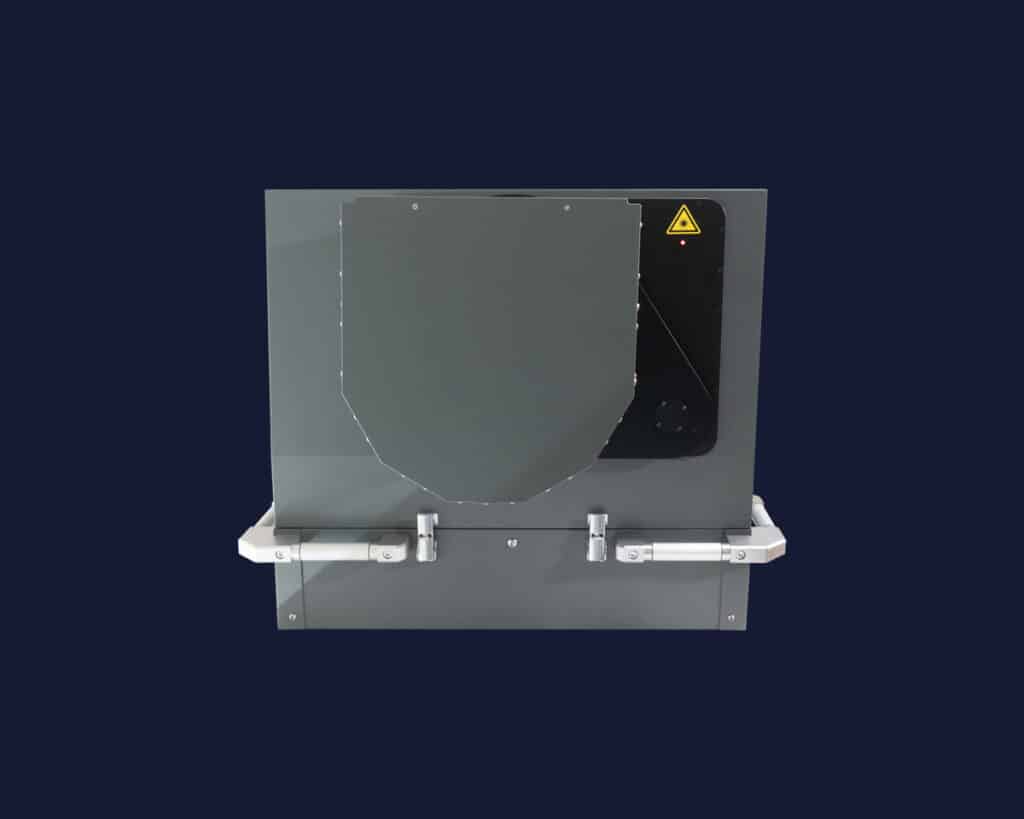

The RTI ANGO Series is a range of ultra high power laser systems that is designed for long distance laser visibility. The ANGO laser systems are full color, analog modulated laser systems with an extremely thin and low divergent beam for the power. They are equipped with the latest high precision laser module technology of RTI.

With continuous wave output powers of 300W and 600W, the RTI ANGO laser systems are extreme in many ways – it‘s not only the power, but also the capability to move the beam!

The individual powers per source color are well balanced so that the color mixture is balanced and homogeneous over long distances.

The divergence of only 1.0 mrad with a beam diameter at aperture of only 100 mm make the beam travel over extremely long distances, as power does not get lost at the beginning and the beam not widening much with increasing distance.

The RTI ANGO laser systems are equipped with a mirror to deflect and position the beam on the x and y axis. The movement of the beam can precisely be controlled via DMX.

To ensure that the ANGO laser systems can withstand adverse weather conditions, they are equipped with active air conditioning for precise temperature control and a robust, rainproof housing. With the air conditioner, the specified operating temperature range for the RTI ANGOs is from -5 to +50°C.

To ensure that the outlet window does not get dirty or get too much water when it rains, a specially designed, movable outlet chamber is attached to the device, which reduces maintenance to a minimum.

Due to the powerful built-in air conditioning, the RTI ANGOs require a 16A CEE 3-phase connection while consuming only 7500W.

Equipment

Wavelength 638-639 nm 520-530 nm 445-450 nm
W R G B
ANGO 300 300 100 85 140
ANGO 600 600 200 170 280
Control Modes

DMX, ArtNET, Stand-Alone

Scanner
Moving XY scanner mirror, 16bit resolution
Divergence*
1,0 mrad
Beam Specs
100x50 mm, 100 mm
Dimensions
L 154,3 cm x W 71,2 cm x H 166,9 cm
Weight
300 kg
IP Rating
65
Scope of Delivery
power cable, manual, keys, interlock
*FWHM average depending on model

Properties

  • With continuous wave output powers of 300W
    and 600W
  • analogue modulated multicolor system, including white
  • moving beam with XY deflection
  • 360° projection angle for tilt
  • weatherproof housing, IP64
  • with active built-in air conditioning
