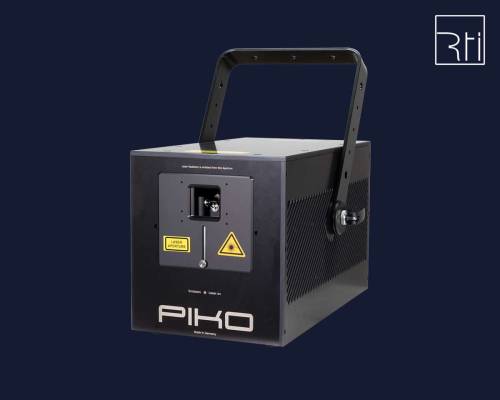

RTI PIKO 100 FB4 IP65 with Motorised Dichroic Filters

Remaining Stock Item - Only as long as Stock lasts!

Only 4 pcs available (price per unit)
ex demo, used

These RTI PIKO 100 FB4 IP65 with Motorised Dichroic Filters laser projectors are built exclusively with the latest RTI semiconductor laser module technology. The PIKO 100 is the most powerful RGB lasers in the RTI PIKO series with 110 W of guaranteed optical output power at the laser modules and 100 W of minimum power at the laser aperture. The RTI PIKO 100 FB4 IP65 with Motorised Dichroic Filters features a powerful 27 W red. With it's compact and robust housing they offer a highly professional solution. The lasers are manufactured entirely in Germany and are equipped exclusively with the powerful RTI semiconductor laser modules. These high-performance RSL modules with their extremely low divergence and homogeneous beam shape make the RTI PIKOs extremely high-visibility laser systems. The small beam diameters of approx. 10 mm allow the use of small scanner mirrors with lower inertia, which enables high scanning speeds. The standard scanners can perform at a maximum scan speed of 38 kpps at 8° and a maximum scan angle of 48°. The intelligent LaserAnimation Sollinger mainboard is integrated into the laser projector and provides the laser operator with a wide range of control and setting options (e.g. via the LA.toolbox) and transmission options (e.g. AVB). Together with the FB4 Max, which is integrated as standard, control via LAN, DMX, ArtNet and ILDA is possible, ensuring maximum flexibility. Thanks to the new LAS mainboard, the laser output of the PIKO projectors can be interrupted via Ethernet using our Laser Disable Button. The Laser Disable can be easily integrated into the network and configured. Control signals can be looped through directly via the integrated network switch. The powerful RTI PIKO lasers are suitable for indoor and outdoor applications such as concerts, festivals and other large events. These laser projectors are fully protected against dust and water jets according to IP65, making them ideal for applications where dust and splashing water (e.g. from rain) are expected. Projections over long distances are no problem for the laser thanks to its extremely high power and good divergence.

• RTI RSL Laser Module Technology for a very good beam profile in all colors.
• Both laser systems emit 27 W at 637 nm in the red spectrum.
• IP65 rated dust and waterproof housing
• Integrated intelligent LaserAnimation Sollinger Mainboard & FB4 as standard
• Control via “LA.toolbox” software (color correction, laser disable). Software included in delivery
• AVB interface for streaming data via Ethernet
• LAN control
• Integrated network switch for looping through the control signal
• LAS motorized dichroic filters
• Incl. flightcase
