PHAENON accurate 10 (1 pc)

Remaining Stock Item - Only as long as Stock lasts!

Only 7 pcs available (price per unit)
used

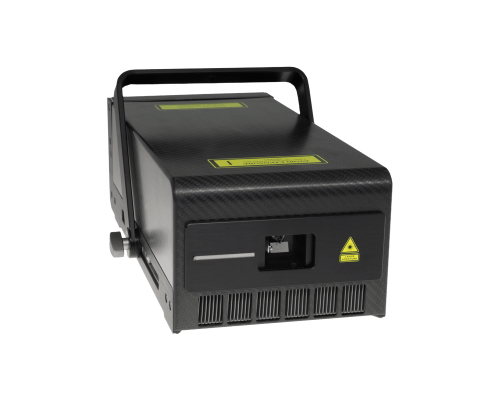

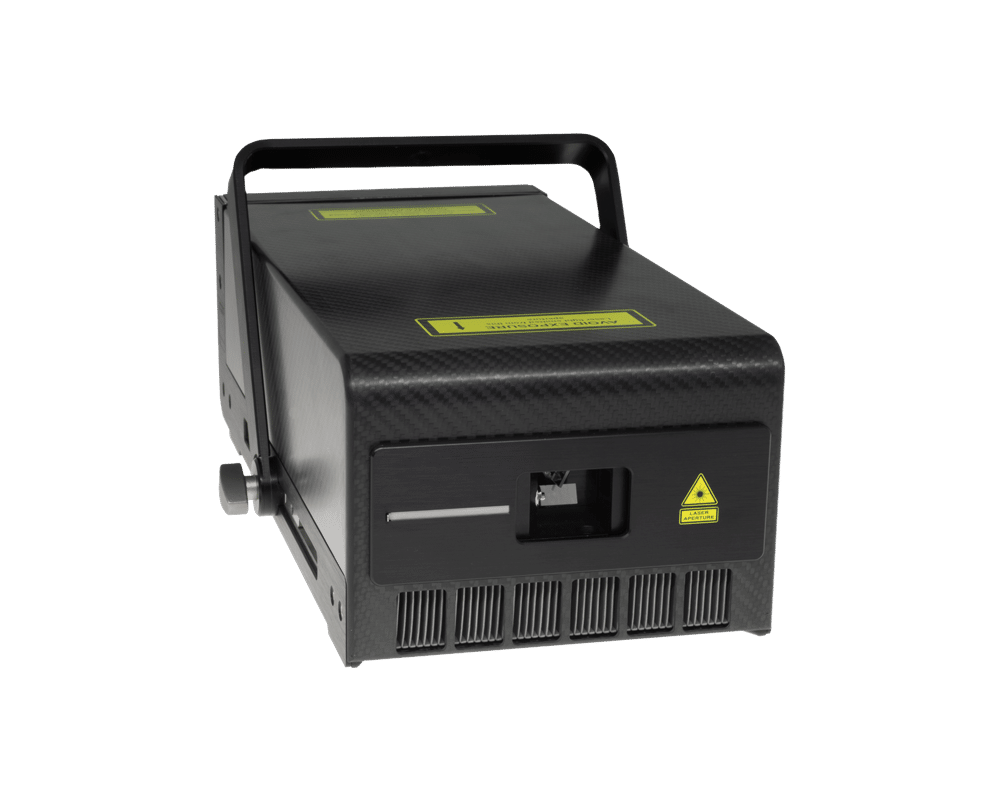

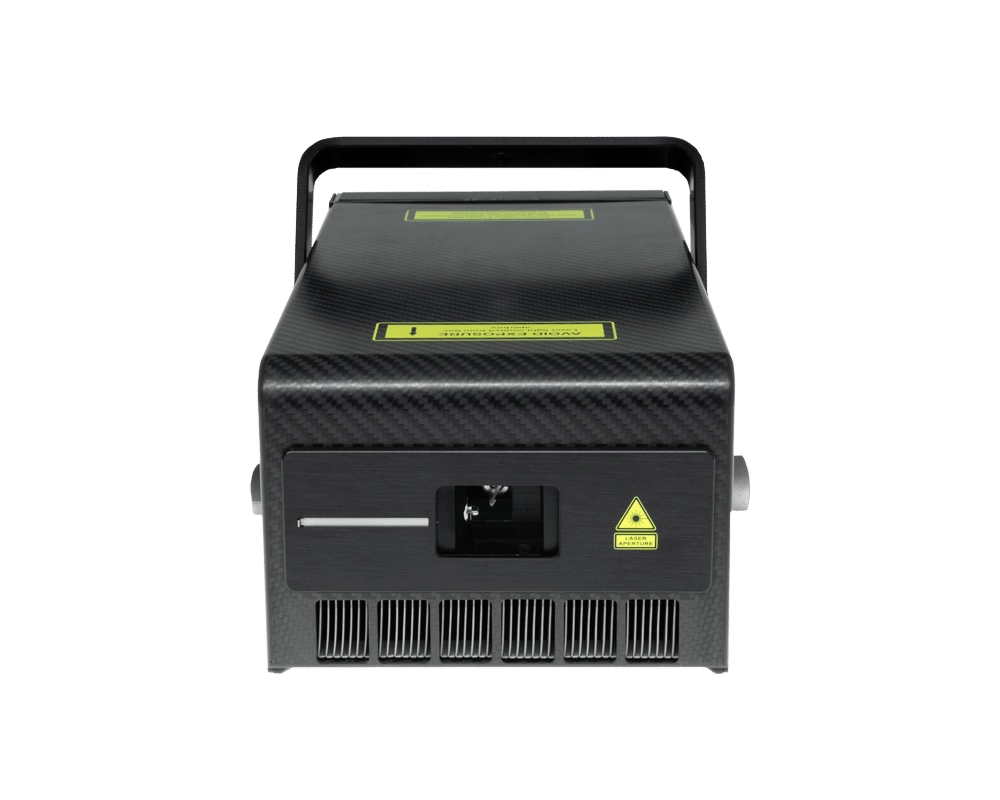

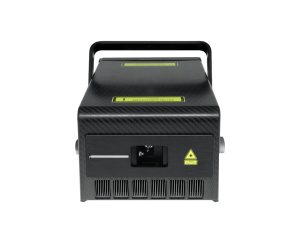

Powerful and lightweight laser projector in handbag format

These very lightweight projectors are designed for mobile indoor use. Due to its simple installation, it is used, for example, for exhibitions that take place at different locations in a short period of time. All components are integrated in a compact ultra-light carbon housing. he intelligent LaserAnimation Sollinger mainboard is integrated into the laser projector and provides the laser operator with a wide range of control and setting options (e.g. via the LA.toolbox) and transmission options (e.g. AVB). Via the LAN AVB interface on the projector, studio equipment e.g. a mixing console for audio, video can be connected directly. Signal sources with an ILDA compliant output can be connected too. The PHAENON accurate 10 (1 pc) is based on a high value laser module consisting of red, green and blue laser diodes which is developed and manufactured by LaserAnimation. The laser diode driver “LDT triple” developed by LaserAnimation guarantees a completely balanced projection picture. All color curves are calibrated so that mixed colors do not change when fading in or out. The required laser safety is ensured by interlock loop and internal scan fail safety circuit. Furthermore, the optional beam blocker set can be used to limiting the laser output in order to protect the audience in a certain area. Monitoring of important functions and adjusting of operating parameters are easily possible using the intuitive “LA.toolbox” software installed on PC or Mac computer.

• Laser module “White 10,000”
• Laser diode driver “LDT triple”
• CT-6210 scanner with the proven Turboscan XD driver electronics

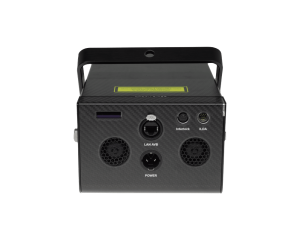

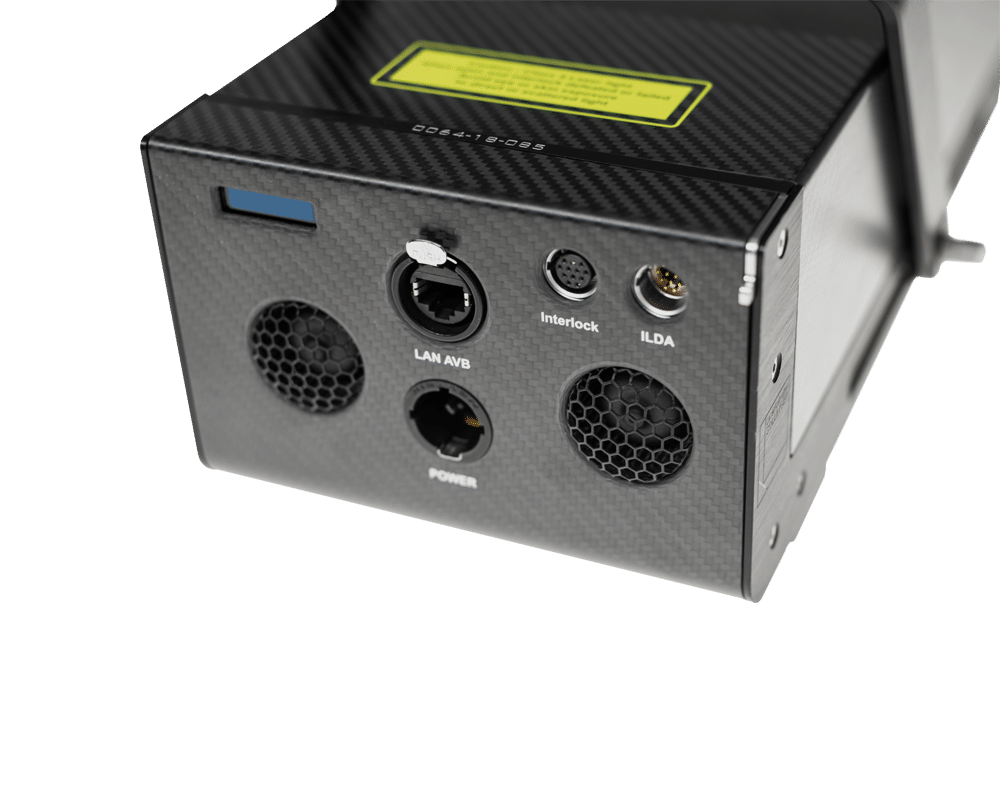

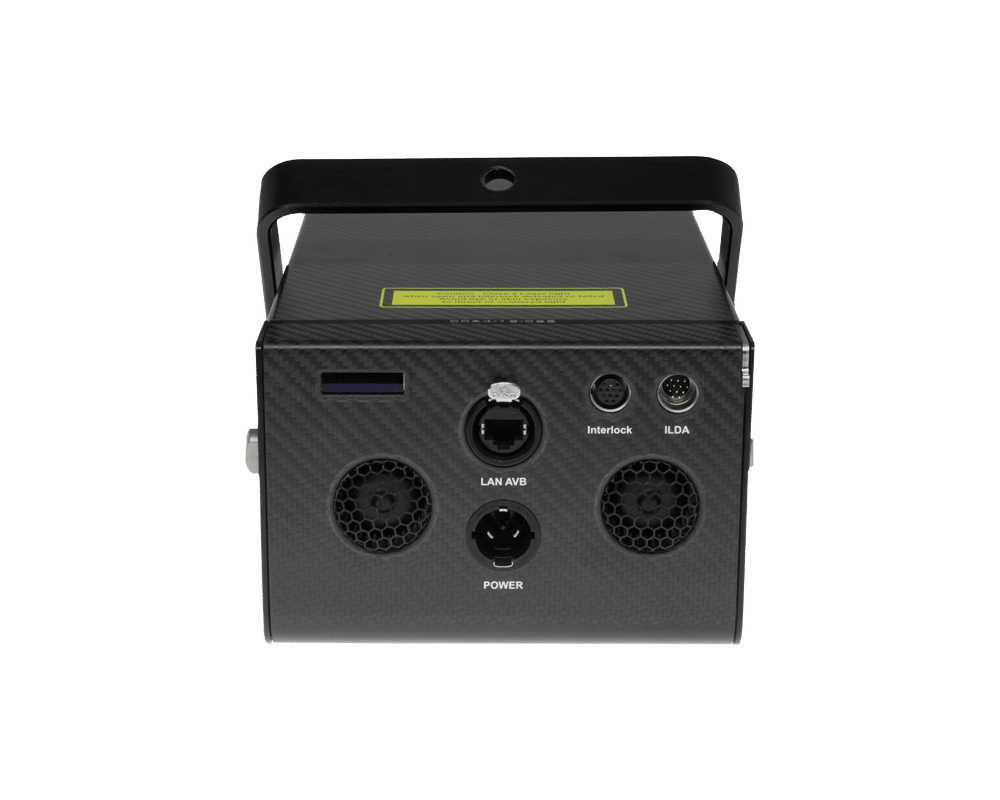

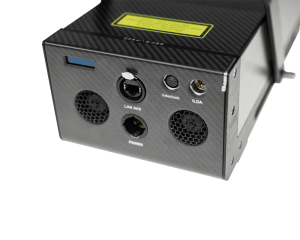

• AVB interface for streaming ILDA data via Ethernet
• Integrated intelligent LaserAnimation Sollinger Mainboard
• Control via “LA.toolbox” software (included)
• Ultralight & compact thanks to carbon fiber housing with approx. 5kg
