Remaining stock item:

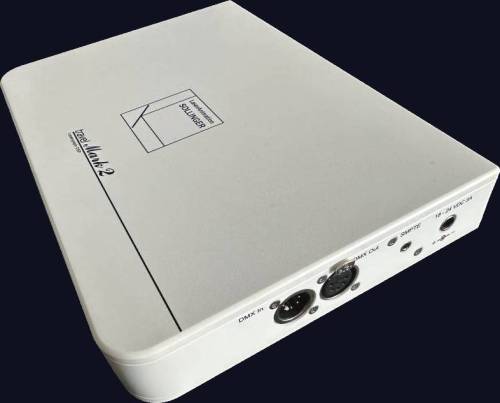

Lasergraph DSP travel Mark2 (2 pcs)


Remaining Stock Item - Only as long as Stock lasts!


Only 2 pcs available (price per unit)
used

The Lasergraph DSP travel Mark2 (2 pcs) is a specialized computer with its own system software, designed for the special requirements of laser output. The two essential components, hardware and software, are developed and manufactured in-house. It is intended for operation in a network. Since its market introduction more than 25 years ago, this laser show controller has been continuously developed, so that today the Lasergraph DSP Mark 2 is a superior control system for laser show and multimedia applications.

Read more ...
  • Outstanding control system for laser show and multimedia applications
  • 1 ILDA output connecting 1 laser projector
  • Specialized computer with proprietary operating system developed for the particular requirements of laser projections
  • Allows complete real-time operation
  • Extraordinary reliability: It just works under all circumstances !
  • Unbeaten color management
  • Outstanding picture quality
  • Unparalleled interactivity for synchronization of laser beams, graphics, light-, water- and pyro-effects as well as video projections
  • Exceptional network capabilities: All input / output devices can be shared / used by all DSPs in a network
  • Groundbreaking software package, from the Playback level to the professional Mark 2 Production Suite
  • Live operation without PC or Mac
  • Sophisticated software concept
  • Unparalleled interactivity
  • Unique network capability


  • Control Modes

    LGRemote, DMX, Midi

  • Weight

    1.3 kg

  • Dimensions

    280 x 200 x 40 mm

  • IP Rating

    IP20

  • Software Levels

    Playback
    Playback of Lasergraph DSP laser shows, the shows are not editable. The Lasergraph DSP with Playback level is a low cost controller which especially makes setups with several Lasergraph DSPs more affordable.
    Mark 2
    Production Suite
    Mark 2 Licensor
    Production Suite additional with Licensing Function. This function allows temporary editing for connected Lasergraph DSP Playback in a network. The Lasergraph DSP Playback becomes a fully editable Lasergraph DSP as long as the network connection exists.

  • Software Package Mark 2 Production Suite

    LG Remote
    Terminal software for programming and editing of laser shows for Windows as well as Mac OS X
    ShowLine
    Timeline application for synchronization of laser with music and video
    proTize converter
    Conversion tool for vector images and bitmaps
    proTize max
    Plug-in for 3ds max
    Lpv Creator
    Recording program for a DSP laser show
    Lpv Player
    Media player for playing back Lpv files on a PC
    jr. Live!
    Playback and live user interface
    DeeMagiX
    DMX application for controlling laser effects using DMX lighting console

  • Versatile Connectivity

    ILDA Out
    Connection for one laser projector according to ILDA standard
    LAN
    Ethernet
    RS232(2x)
    Connection for media controller
    RS485(Fader)
    Connection of a faderboard unit
    DMX In/Out
    To connect DMX lighting console, dimmer (fog machine) etc.
    Midi In/Out
    To connect Midi keyboard or Midi controller "Ohm 64"
    18-24 VDC 3A
    Mains voltages 100 - 240 VAC

  • Supported Network Protocols

    • TCP/IP
    • UDP
    • Art-Net (TCP/IP based Ethernet protocol for DMX512 transfer)
    • OSC (Open Sound Control)

  • Supported Visualization Software

    • wysiwyg
    • Realizzer 3D
    • Capture Atlas
    • Depence V:3D Visualizer
    • Lightconverse

  • Included Extras

    • More than 30 outstanding laser shows as well as interactive games
    • More than 40 font files
    • Comprehensive library with animations containing more than 11.000 frames
    • Collection of demo files for essential commands
    • Detailed user guide
    • Basic training with a professional tutor
    • Software update free of charge - valid 12 months after purchasing

    •

TECHNICAL DETAILS

Operation Modes
LGRemote, DMX, Midi
Power Supply
100 - 240 VAC - 18-24 VDC 3A
Dimensions
280 x 200 x 40 mm
Weight
1.3 kg
EAN / MPN
R83108
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.




Remaining Stock Price: 3,000.00 €
excl. VAT, excl. shipping
