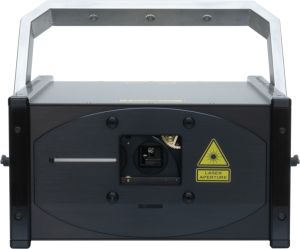

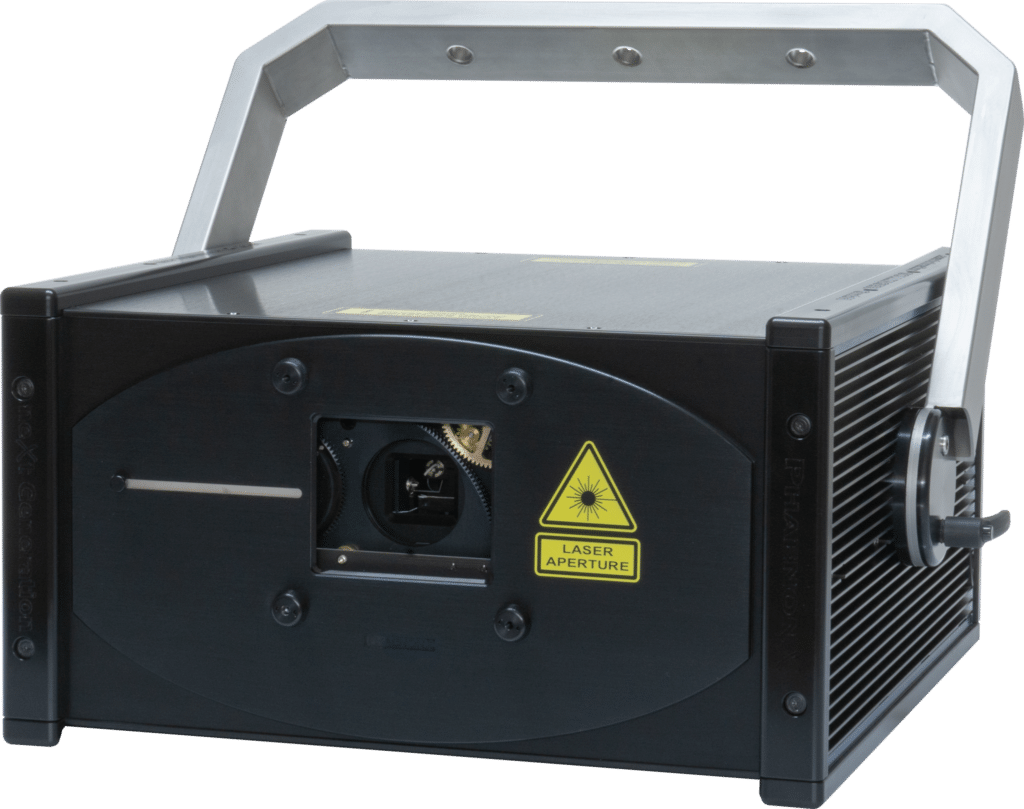

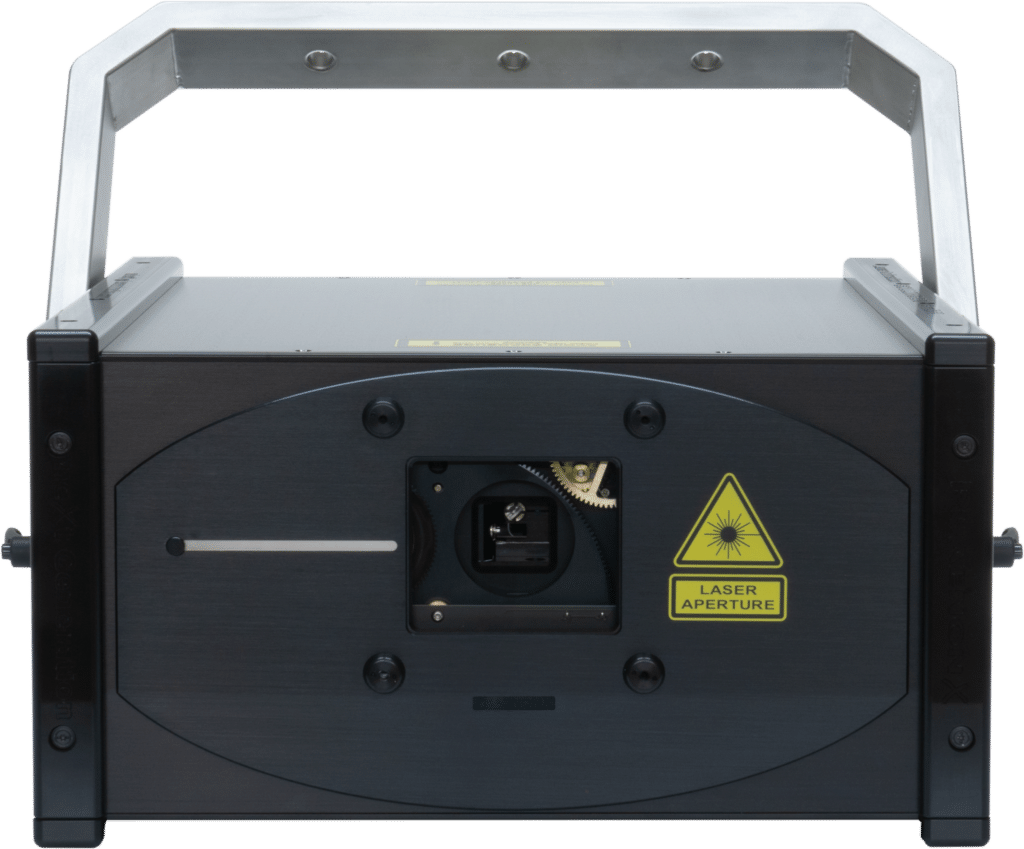

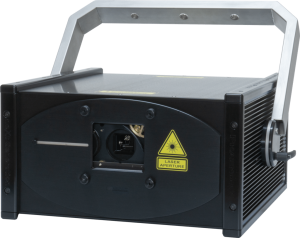

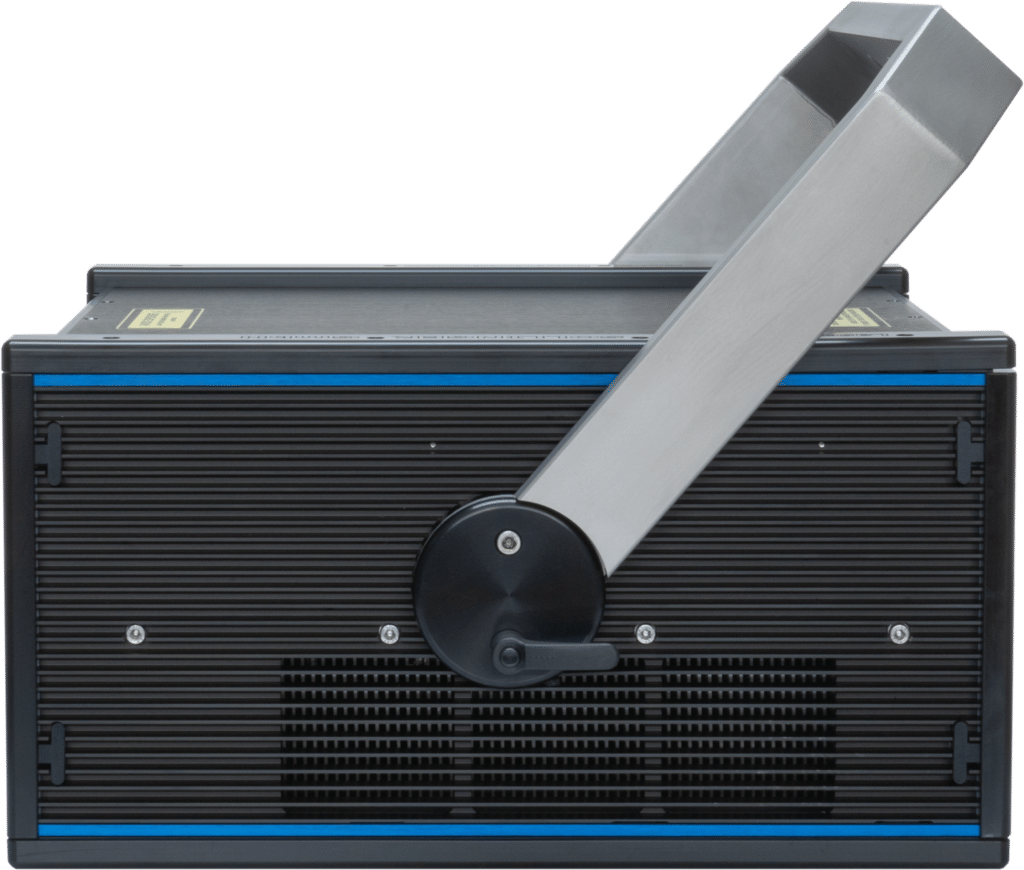

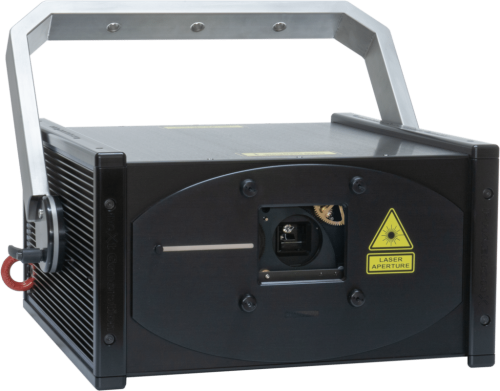

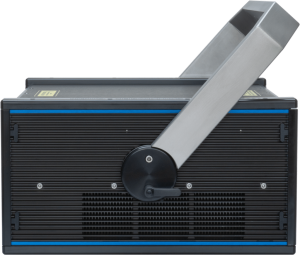

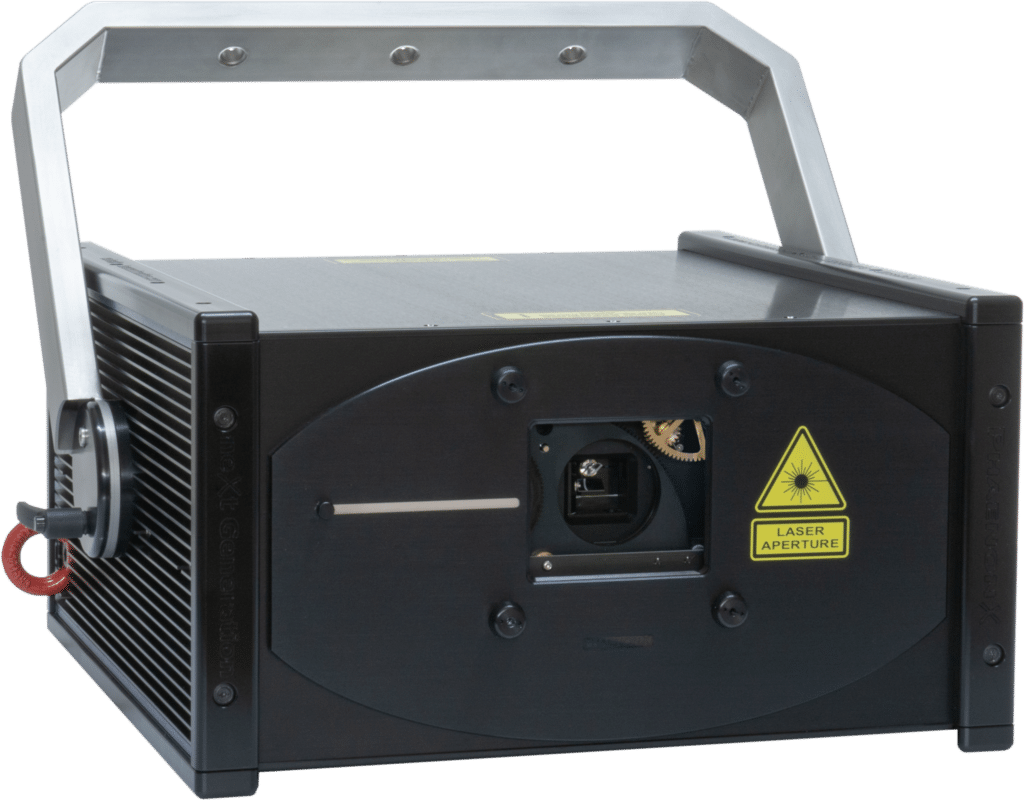

PHAENON XD 24 FB4 with Grating Wheel
Remaining Stock Item - Only as long as Stock lasts!
The PHAENON XD 24 FB4 with Grating Wheel is a high-end color laser projector for professional applications. Integrated is a modular laser system with laser diode modules from LaserAnimation in red, green and blue. All laser colors are combined to a focused beam of high intensity. The laser sources stand out due to their high beam quality in rich colors, low divergende as well as their enormous durability.
The parameters for operating temperature and current set by the manufacturer of the laser sources are observed strictly in order to maximize their life expectancy. Special optical components for beam forming, beam combination and focusing and their professional placement and setup guarantee a sharp precise beam with a homogenous beam profile and low divergence, even over longer distances
The PHAENON XD 24 FB4 with Grating Wheel in a 420 x 406 x 223 mm compact housing. The PHAENON XD 24 FB4 with Grating Wheel is in a IP54 housing.
The PHAENON XD 24 FB4 with Grating Wheel laser projector has been known in the industry for years for their excellent quality, exceptional reliability, guaranteed safety and high ease of use. That's why they are the first choice of numerous renowned companies from the event sector for extensive installations with lasers.
The laser projector is delivered in a flight Case
- Modular laser system with LaserAnimation manufactured red and blue laser and green laser modules
- Integrated intelligent LaserAnimation Sollinger Mainboard
- Control via "LA.toolbox" software (electronic mask, color correction, DGC, laser disable). Software included in delivery
- AVB / TSN interface for streaming data via Ethernet
- Motorized beam adjustment for an exact color overlay
- CT 6210 scanner with proven TurboscanXD driver electronics
- Control Modes
- Typical wavelength
- Type
- Beam Diameter(FWHM)
- Beam Divergence(FWHM)
- Scanner
- Weight
- Dimensions
- IP Rating
- Thermal
- Electrical Input
- Laser Safety
- Climate Components
- Standardized Connectors
AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, Stand-alone player, ILDA, DMX / ArtNET, Control software “LA.toolbox” for PC or Mac included
638 nm | 532 nm | 445 nm
CW analog modulated
4.5 mm
< 0.5 mrad
CT-6210 scanner with LaserAnimation's proven Turboscan XD driver electronics for excellent projection quality Scanning speed: 60 kpps at 8°, maximum projection angle: 80° (typically 50°), response time (2° opt. step): < 0.2 ms, aperture: 4,5 mm
30 kg
420 x 406 x 223 mm
IP 54
Ambient temperature -5°C - +50°C
Universal input: 85VAC - 264VAC, 50 - 60Hz
Electronic mask to define protected areas in a laser projection using controlling software
Scanfail safety circuit
Physical adjustable beam blocker
Key switch, Interlock and emission LED
Generously dimensioned heat sink as base for all temperature relevant components
Peltier elements for either heating and cooling

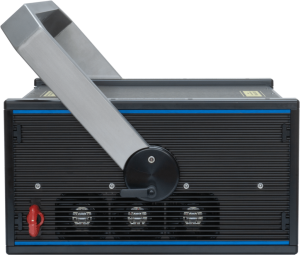

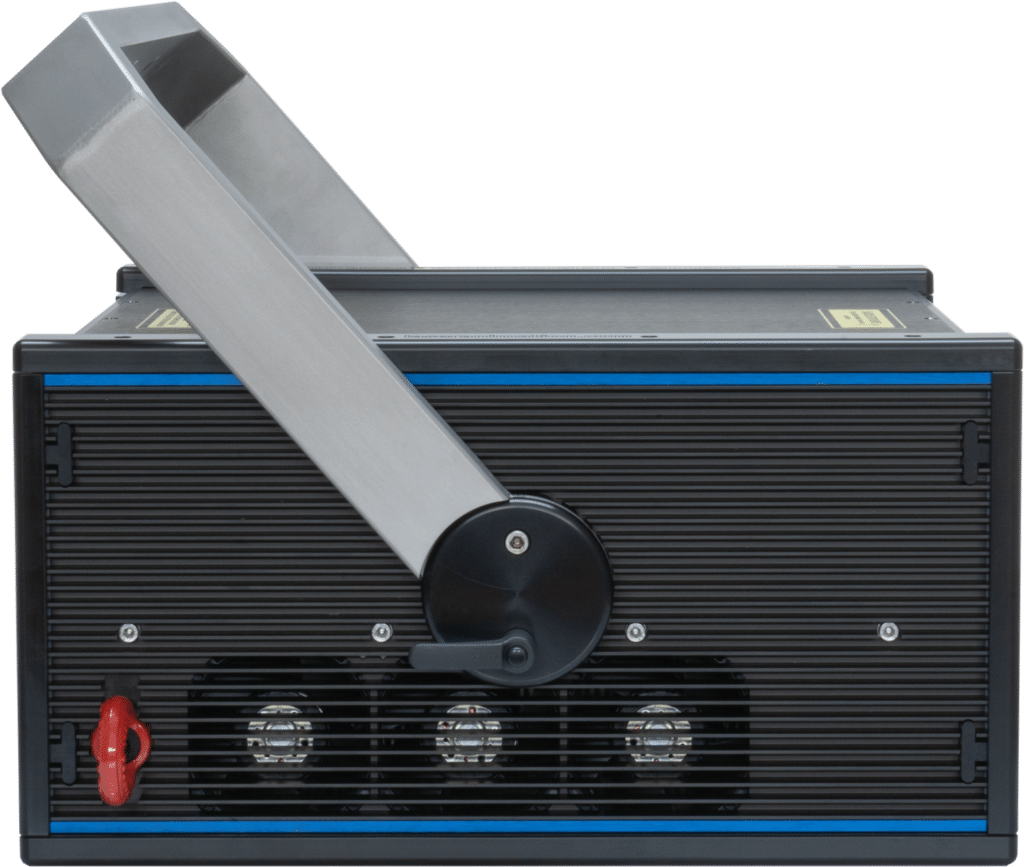

Temperature controlled low noise fans with high efficiency

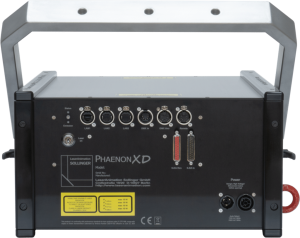

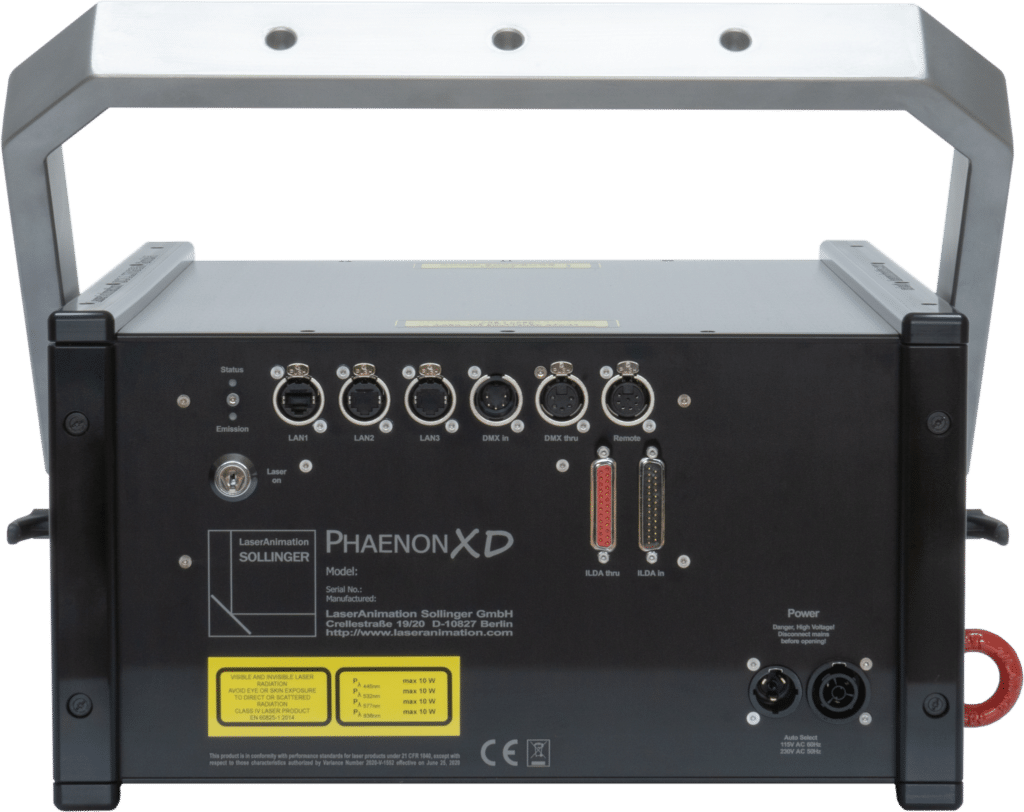

AC Mains Connector: Neutrik PowerCon TRUE I
Projector Signal, analog: ILDA In D-sub 25 differential inputs
Remote: 7pin XLR (external key switch, interlock)
DMX In/Thru
LAN
TECHNICAL DETAILS
