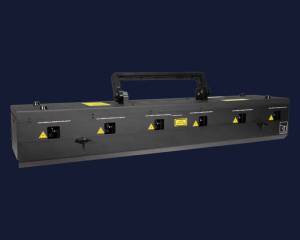

RTI NEO S12 (1 pc)

Remaining Stock Item - Only as long as Stock lasts!

Laser system with six separate scanner units and integrated ShowNET mainboard RTI RGB Beam Array with analog modulation and six beam outlets.

Integrated ShowNET mainboard for direct laser control via LAN.

In addition to the single beam, the RTI NEO S12 offers more than 100 standard pre-set patterns (stored on SD card via ShowNET), which can be displayed by all six laser outlets or selected individually.

The RTI NEO S12 lasers can be controlled through DMX and ArtNet, as well as directly through various computer software programs, such as Showeditor, Showcontroller, TouchDesigner, or MadMapper/MadLaser, thanks to the internal ShowNET hardware. It is possible to create different chaser, beam and fan laser light effects and to integrate the projectors into existing lighting setups. These devices are excellent for enhancing visual effects on stages, live gigs, nightclubs, show productions, and any event that requires a unique visual enhancement.

Compared to previous laser projectors in the RTI NEO Series, the RTI NEO S12 offers the user additional control options with the integrated ShowNET professional laser mainboards.

These control options include:

Automatic mode

This mode allows for playback of internal animations and patterns. Over 100 pre-made patterns are saved on an SD card and can be triggered automatically to either run consecutively or as single file loop.

Professional DMX & Art-Net

It is possible to switch between two different DMX modes, using 19 channels or 34 channels per ShowNET. In DMX or ArtNet mode, the patterns saved on the SD card can be triggered. The patterns on the SD card can be modified and new content (.ILD files) can be uploaded. The upload is done via the Admin Tool software. Projection and safety zones can be easily set using just a DMX / ArtNet / lighting controller or the Admin Tool. These zones are then stored inside the ShowNET mainboard for safe operation. No additional computer or license is required for these settings.

Computer Control

The ShowNET mainboard integrated in the RTI NEO S12 allows direct control via LAN, i.e. various software programs can be used to control this laser projector directly. The software programs include MadMapper/MadLaser TouchDesigner Millumin Showcontroller Showeditor This feature is also a great advantage in terms of distributed scanning across the 6 laser outputs for enhanced graphics display. The guaranteed output power of 12 is evenly distributed among the 6 beam outlets with 6x 600mW / 638nm, 6x 500mW / 520nm and 6x 900mW / 450nm, ensuring a homogeneous and balanced beam result.

• Can easily be integrated into an existing lighting setup
• Integrated ShowNET intelligent laser mainboards per outlet
• Professional DMX with customizable patterns
• Setting up projection and safety zones via DMX / ArtNet / lighting controller and storing them on the ShowNET mainboard for safe operation
• Distributed scanning across the 6 laser outlets (software depending)
• Direct control via LAN by various software programs like MadMapper/MadLaser, TouchDesigner, Millumin, Showcontroller, Showeditor, etc.
• 6 x X/Y scanners at 45 kpps @ 8° ILDA
• Laser class: class 4 laser product DIN EN 60825-1: 2015-07

• Various control options: Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, LAN (Computer control, integrated DAC)
• Create custom content, store it inside the laser and play it back in different modes
• Free laser show control software included
